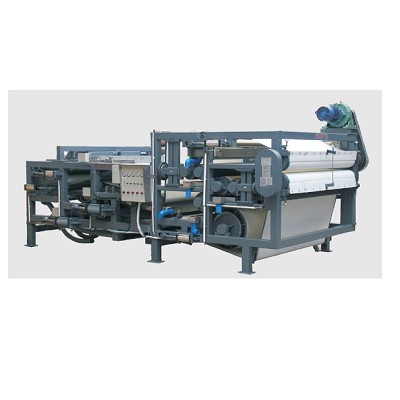

with thickner, it can dewater lower concentration slurry with high effiency.
Specification | Product DYQ-NP1 family with thickner | ||||||
DYQN1000P1 | DYQN1500P1 | DYQN2000P1 | DYQN2500P1 | DYQN3000P1 | DYQN3000P1 | ||
Power(KW) | Main motor | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Thickner | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 4 | |
Total | 13 | 19 | 21 | 25 | 27 | 29 | |
Belt Width(mm) | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | |
Capacity(m3/Hr) | 8~16 | 12~21 | 20~30 | 25~35 | 35~45 | 40~60 | |
Size(mm) | Length(L) | 5400 | 5500 | 5600 | 5600 | 5650 | 7800 |
Width(W) | 1900 | 2400 | 2900 | 3400 | 3900 | 4500 | |
Height(H) | 2200 | 2250 | 2300 | 2300 | 2400 | 2850 | |
Equipment Weight(Kgs) | 5500 | 7500 | 9000 | 11000 | 13000 | 18500 |
