Products

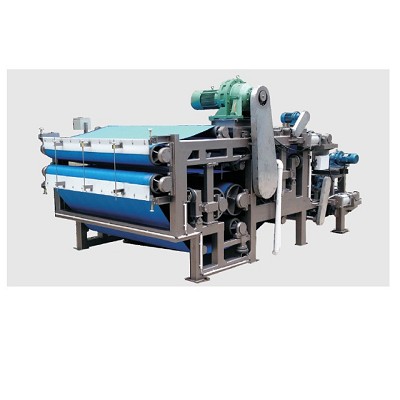

Squeezing type belt filter press
Brand:Powerful Squeezing series
Model:Squeezing type very high efficiency for dewatering
Description:
Squeezing type
With powerfuly squeezing rollers, the efficency of dewatering is very high. It is widely used in many food or vegetable dewater procees
Specification | Product DYQ-P3 Squeezing Family | ||||
DYQ1000P3 | DYQ1500P3 | DYQ2000P3 | DYQ2500P3 | ||
Power(KW) | Main motor | 4 | 5.5 | 7.5 | 11 |
Thickner | / | / | / | / | |
Total | 13 | 17 | 21 | 25 | |
Belt Width(mm) | 1000 | 1500 | 2000 | 2500 | |
Capacity(m3/Hr) | 2~6 | 5~12 | 9~22 | 16~36 | |
Size(mm) | Length(L) | 4500 | 4800 | 5400 | 5500 |
Width(W) | 1800 | 2300 | 2800 | 3300 | |
Height(H) | 2300 | 2400 | 24509 | 2450 | |
Equipment Weight(Kgs) | 6500 | 10500 | 12500 | 15000 |
