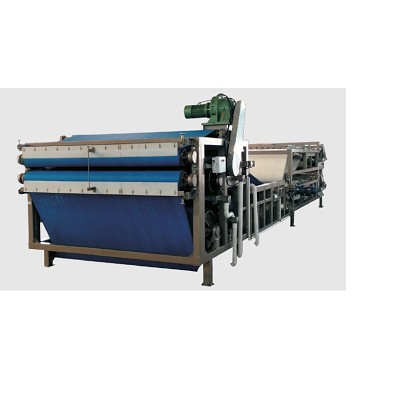

This equipment is suit for the mining and big waste water treatment plant. The capacity can reach more than 150m3/hr.
Specification | Product DYQ-NP1FZ family-for Mine, big waste water treatment plant | ||||||
DYQN2500P1FZ | DYQN3000P1FZ | DYQN3500P1FZ | DYQN4000P1FZ | DYQN5000P1FZ | DYQN6000P1FZ | ||
Power(KW) | Main motor | 5.5 | 7.5 | 7.5 | 11 | 15 | 15 |
Thickner | 2.2 | 2.2 | 3 | 4 | 5.5 | 7.5 | |
Total | 29 | 36 | 41 | 46 | 51 | 57 | |
Belt Width(mm) | 2500 | 3000 | 3500 | 4000 | 5000 | 6000 | |
Capacity(m3/Hr) | 30~45 | 40~60 | 50~70 | 60~80 | 70~100 | 90~120 | |
Size(mm) | Length(L) | 9000 | 12000 | 12000 | 13000 | 14000 | 14000 |
Width(W) | 3400 | 3900 | 4400 | 4900 | 5900 | 6900 | |
Height(H) | 2300 | 2300 | 2700 | 2700 | 3100 | 3200 | |
Equipment Weight(Kgs) | 9000 | 12000 | 14000 | 16000 | 21000 | 26000 |
